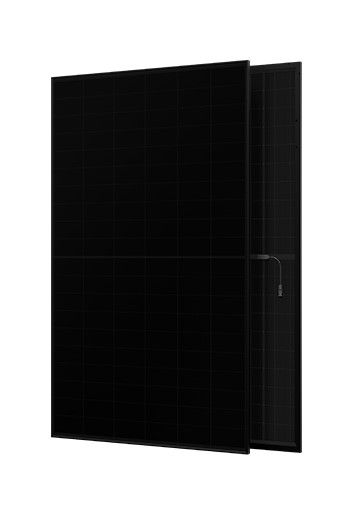

Aiko AIKO-A500-MAH60Db Neostar 2S+ 500-520 Full Black Solar Panel Monofacial

N-Type ABC Monocrystalline Solar Module Neostar 2S+ 500-520 Full Black

High‑efficiency dual‑glass solar module with a full‑black aesthetic designed for durable rooftop and ground‑mounted PV applications, delivering reliable 500–520 W output per unit with excellent low‑light behavior and strong weather resistance.

Applications and use cases

This N‑Type ABC solar module is built for versatile PV deployments including residential rooftops, commercial installations, and industrial field projects. It supports modern string configurations and is well suited to long‑span arrays where a compact vertical footprint and a uniform, black finish are desired. The design emphasizes reliability in partial shading and varying climate conditions, making it suitable for both new builds and retrofits in diverse geographic markets.

• Rooftop and ground‑mounted PV systems for homes, businesses, and industrial facilities
• Commercial/industrial solar farms and large‑scale rooftop projects
• Arrays operated in up to 1500 V DC electrical systems
• Durable, full‑black appearance with robust mounting and weather resistance

Key electrical and performance parameters

Engineered to deliver solid power density with stable performance across temperature and light conditions, this module combines N‑Type ABC cells with a double‑glass construction to maximize energy yield and longevity.

• Power range: 500–520 W (Neostar 2S+ family) with typical Pmax around 500–520 W per unit
• Voltage and current metrics (STC): Vmpp ≈ 37.9 V, Voc ≈ 45.02 V, Impp ≈ 13.21 A, Isc ≈ 14.06 A
• Panel efficiency: ≈ 22.6% at STC
• Power tolerance: +3% (positive tolerance)
• Temperature coefficients: Pmax ≈ -0.26%/°C, Voc ≈ -0.22%/°C, Isc ≈ +0.05%/°C
• Maximum system voltage: 1500 V
• Cell type and count: N‑Type, 120 cells
• Glass type: Double glass; Frame: Black anodized aluminum
• Connector: MC4‑EVO2; Cable cross‑section: 4 mm²
• Physical size and weight: 1954 mm (H) × 1134 mm (W) × 30 mm (D); Weight approximately 27.2 kg
• Warranty: 25 years on product, 30 years linear power warranty

Mechanical design and installation

The Neostar 2S+ module features a durable black anodized aluminum frame with a premium dual‑glass construction designed to withstand higher snow and wind loads, enabling reliable operation in demanding environments. Its generous dimensions and weight are matched to standard mounting systems for residential and commercial PV deployments, with a 1500 V DC rating to support modern string configurations. For technical details, a related PDF specification is available to guide installation and system design decisions.

• Dimensions: 1954 × 1134 × 30 mm; weight: ca. 27.2 kg
• Frame and finish: Black anodized aluminum; glass: double glass
• Mounting compatibility: suitable for rooftop and ground‑mounted installations with common racking systems
• Connectivity: MC4‑EVO2 connectors; cable cross‑section 4 mm²
• Weather and load ratings: robust construction supports up to 5,400 Pa snow load and 2,400 Pa wind load (per selected manufacturer notes)
• Electrical safety and longevity: designed for high‑quality, long‑term performance with a 25‑year product warranty and 30‑year power warranty
• Documentation: PDF specification available for detailed electrical and mechanical data

Download PDF specification: Neostar 2S+ 500-520 Full Black – PDF spec
