OFF 4MLuC1Va
Description

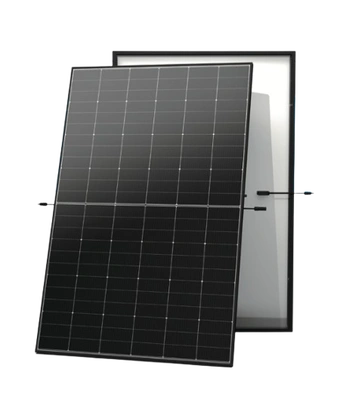

• Suitable for residential and C&I rooftop • Light double glass for reliability (less micro-cracks/scratches) • High power up to 470W and up to 23.5% efficiency • Excellent low irradiation performance (3rd party validated) • Certified resistance: salt spray, sand dust, ammonia, PID • Certified product carbon footprint assessment
Price list
= 36
= 936
| Unit | Price (/Wp) |
| 4 - 8 pallets | €0.126 |
| 9 - 17 pallets | €0.123 |
| 18 and more pallets | €0.120 |
Product details
| Series Name | TSM-NEG9R.28 440-470 |
| Series Power Range (Wp) | 440-470 |
| Model Name | TSM-455 NEG9R.28 |
| Warranty Years | 15 |
| Secondary (Years, % Output Power) | 30, 87.4 |
| Voltage at Maximum Power, Vmpp (V) At STC | 45 |
| Current at Maximum Power, Impp (A) At STC | 10.11 |
| Open Circuit Voltage, Voc (V) At STC | 53.4 |
| Short Circuit Current, Isc (A) At STC | 10.77 |
| Panel Efficiency (%) At STC | 22.8 |
| Power Tolerance, - (%) At STC | 5 |
| Temperature coefficient of Pmax (%/°C) | -0.29 |
| Temperature coefficient of Voc (%/°C) | -0.24 |
| Temperature coefficient of Isc (%/°C) | 0.04 |
| Maximum System Voltage (V) | 1500 |
| Series Fuse Rating (A) | 25 |
| Cell Number | 144 |
| Glass Type | AR Coating Heat Strengthened Glass |
| Glass Thickness (mm) | 1.6/1.6 |
| Frame Type | Anodized Aluminium Alloy, Black |
| Junction Box Protection Class | IP68 |
| Connector Type | MC4 EVO2 |
| Cable Crosssection (mm²) | 4 |
| Cable Length (mm) | 200/320 |
| Cell Technology | Front contact |
Measurements
| Height (mm) | 1762 |
| Width (mm) | 1134 |
| Depth (mm) | 30 |
| Weight (kg) | 21 |
